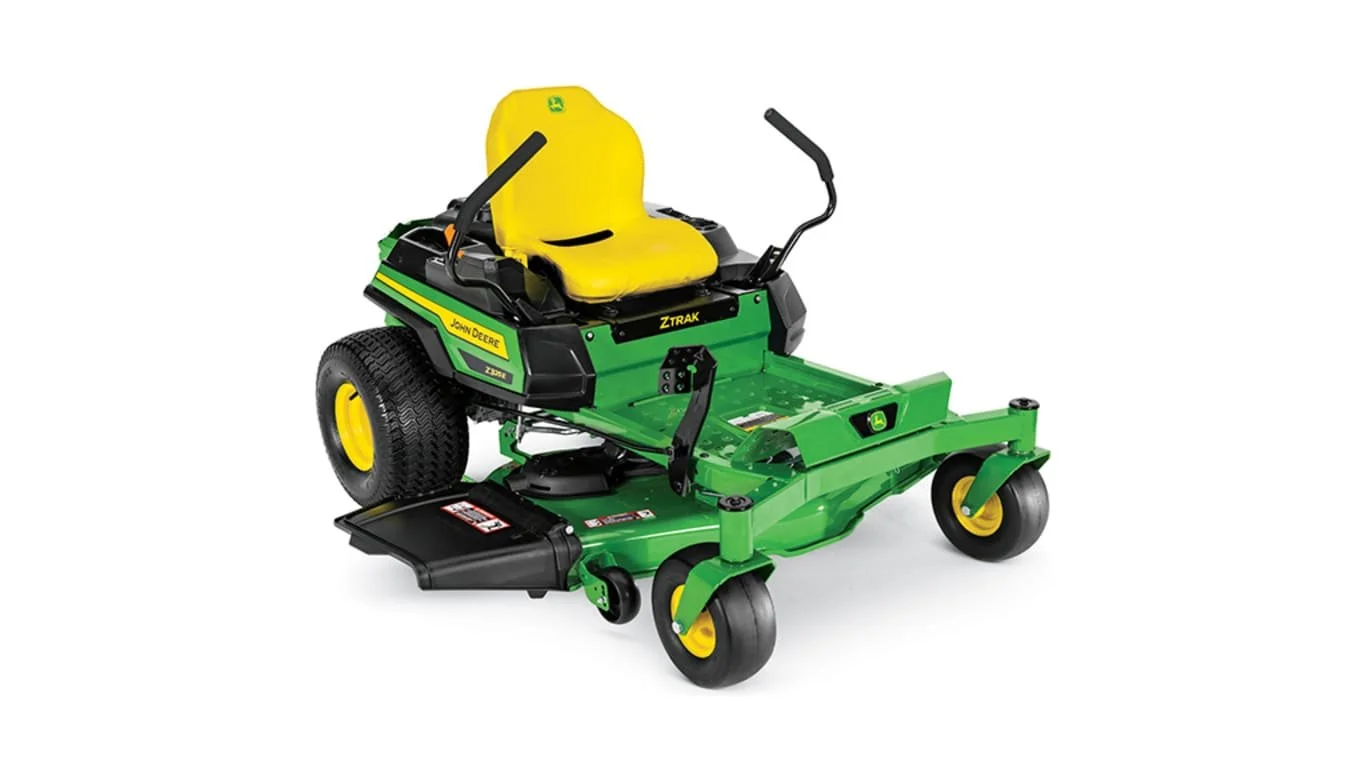

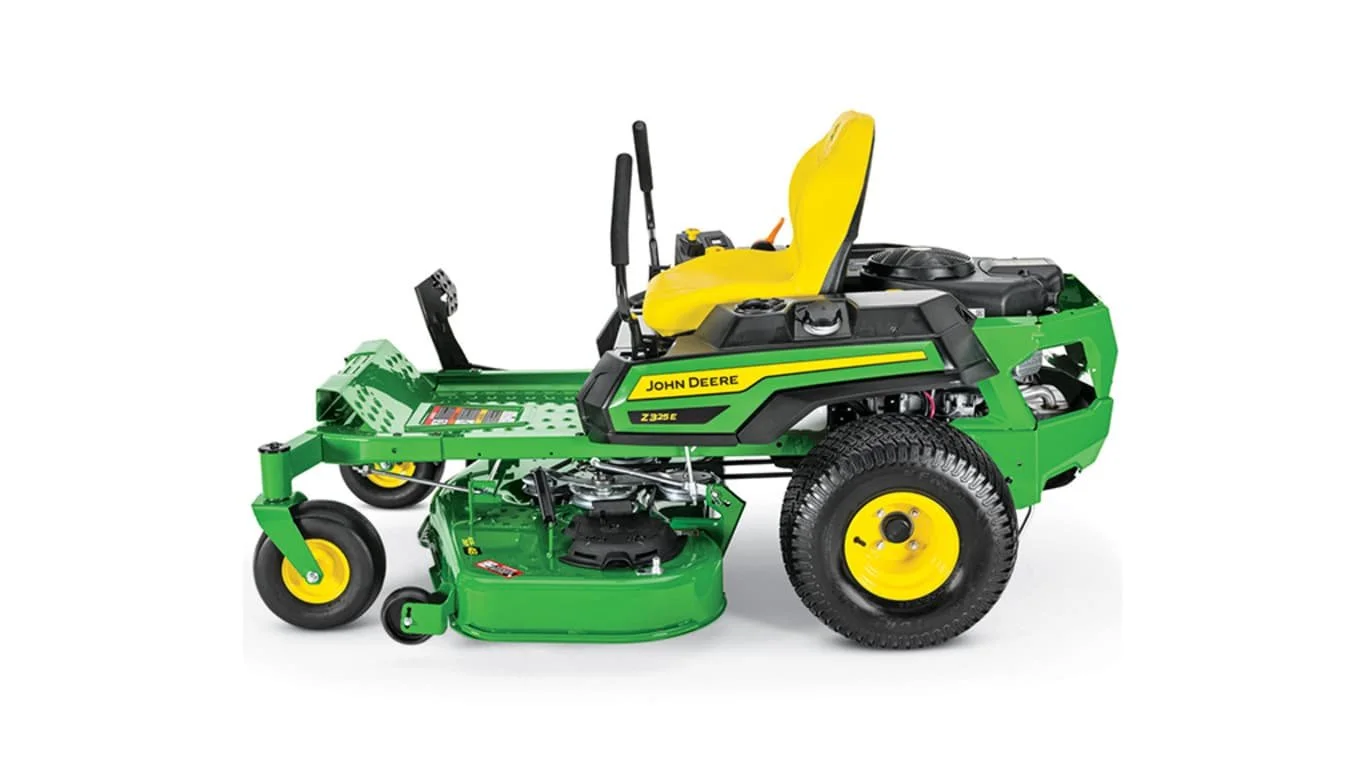

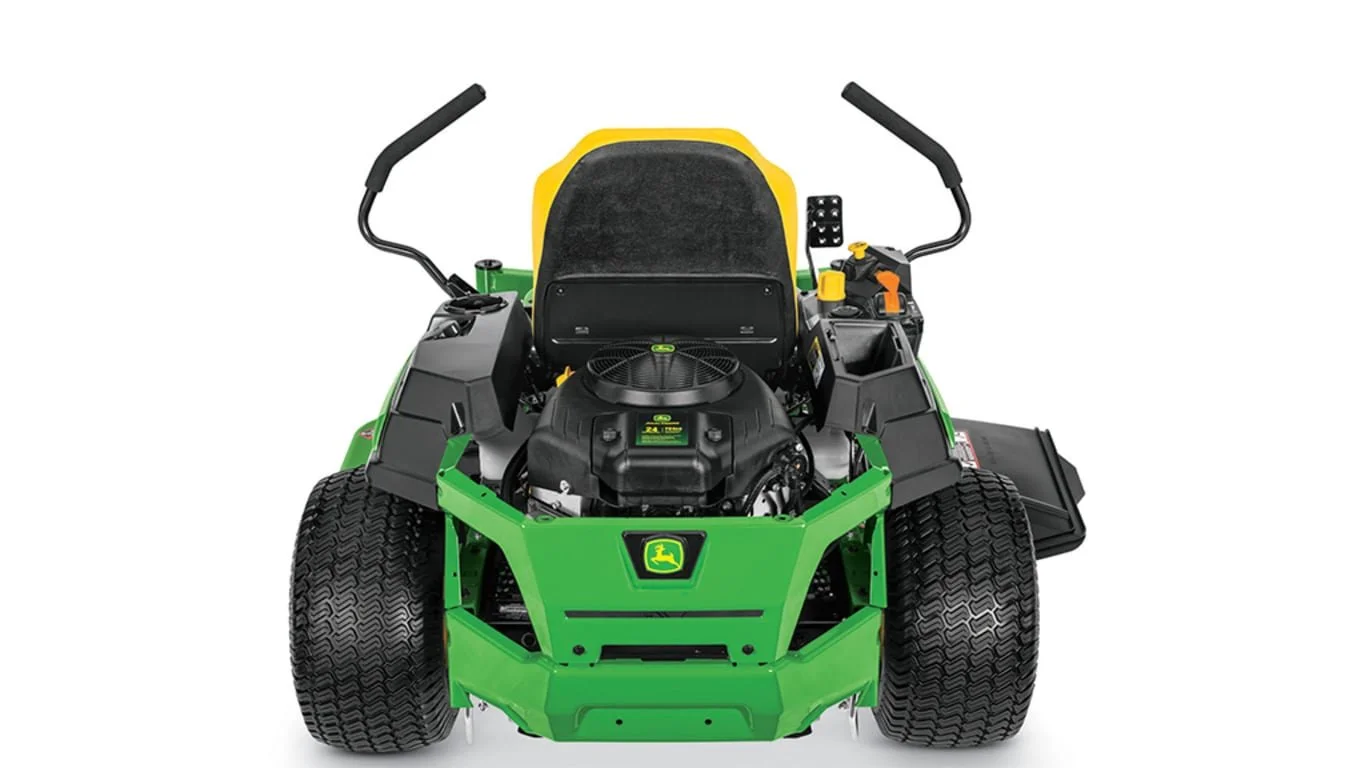

Z325E ZTrak™ Mower with 48-in. Decks.

ne power 24 hp 17.9 kW Engine model number 44 EXi Forward speed 0-7 mph 0-11.3 km/h Front caster tires 11×6-5 Drive tires 20×10-8 Seat back height High back with optional armrests, 18 in. 46 cm Width of cut Accel Deep™ mower deck, 48 in. 122 cm Accel Deep™ mower deck, 54 in. 137 cm Mulching system Optional MulchControl™ attachment Warranty 3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) Key Specs Power 24 hp 17.9 kW Model number 44 EXi Displacement 44.2 cu in. 724 cc Cylinders V-twin Lubrication Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L Type Overhead valve Battery 12 V 300 CCA Choke/speed control Single lever Cooling method Air Fuel tank capacity 3.0 U.S. gal. 11.4 L Fuel gauge Translucent tank Engine Dual hydros Hydro-Gear EZT-D with 1-in. (2.5-cm) axles Drive train Forward speed 0-7 mph 0-11.3 km/h Reverse speed 0-3.5 mph 0-5.6 km/h Speed and direction control Twin levers Control adjustment 3 height, 11 positions Travel speed Frame Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing Primer/paint E-coat/powder Front caster tires 11×6-5 Front caster bearings Sealed ball bearings Drive tires 20×10-8 Hour meter Yes Service interval decal Yes Storage compartment Optional covered Cup holder Yes Maximum towing capacity 250 lb 113 kg Chassis Seat back height High back with optional armrests, 18 in. 46 cm Fore-aft adjustment 2.9 in. 7 cm Seat suspension Two springs Seat Type Foot lift Mower cut height 1.25-4.5 in. 3-11 cm Cut height increments 0.25 in. 0.64 cm Preset cut height Yes Lift system Width of cut Accel Deep™ mower deck, 48 in. 122 cm Accel Deep™ mower deck, 54 in. 137 cm Type Side discharge Mower deck material 10 gauge 0.135 in. 3.4 mm Mower drive system V-belt Mower deck Type Electric, 105 lb-ft 142 Nm Drive V-belt PTO Wheelbase 49.4 in. 1255 mm Overall length 75.4 in. 1915 mm Width without mower 43.3 in. 1100 mm Width with mower 48A: 62.6 in. 1590 mm 54A: 68.5 in. 1740 mm Width with mower (deflector raised for storage) 48A: 52.8 in. 1340 mm 54A: 57.1 in. 1450 mm Height 42.5 in. 1080 mm Weight 48A: 594 lb 270 kg 54A: 605 lb 275 kg Dimensions Rollover protective structure (ROPS) No Slope operating limit 13 degrees; 10 degrees with Material Collection System Operator presence system Yes Park brake interlock Yes Operator video Yes, online Operation Note 1 Durable Accel Deep Mower Decks are forged from 10-gauge steel with double captured mower wheels Note 2 Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial Note 3 Integrated park brake is automatically applied when steering levers are stowed outward Warranty 3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) Buyer’s notes Mulching system Optional MulchControl™ attachment Rubber floor mat Optional Sun shade Optional Mounted sprayer Not available Protective cover Optional Light kit Optional Material collection system Two-bag Power Flow MCS, 6.5 bu 229 L Optional attachments Manufacturing location Greeneville, Tennessee, USA Date collected 3-Oct-22
