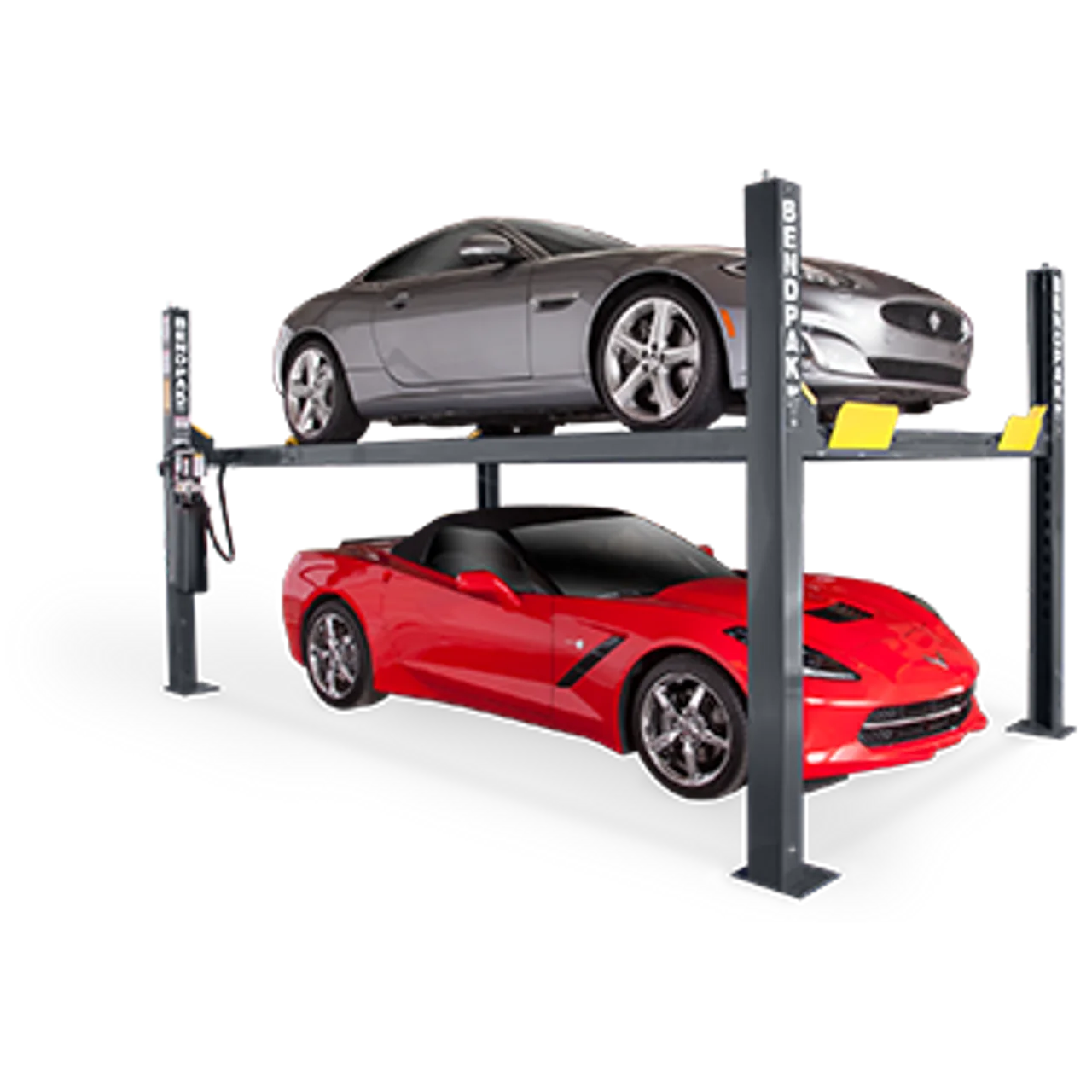

BENDPAK HD-9XL 9,000-lb. Capacity / Four-Posts Lift / Standard Width / Extended Length

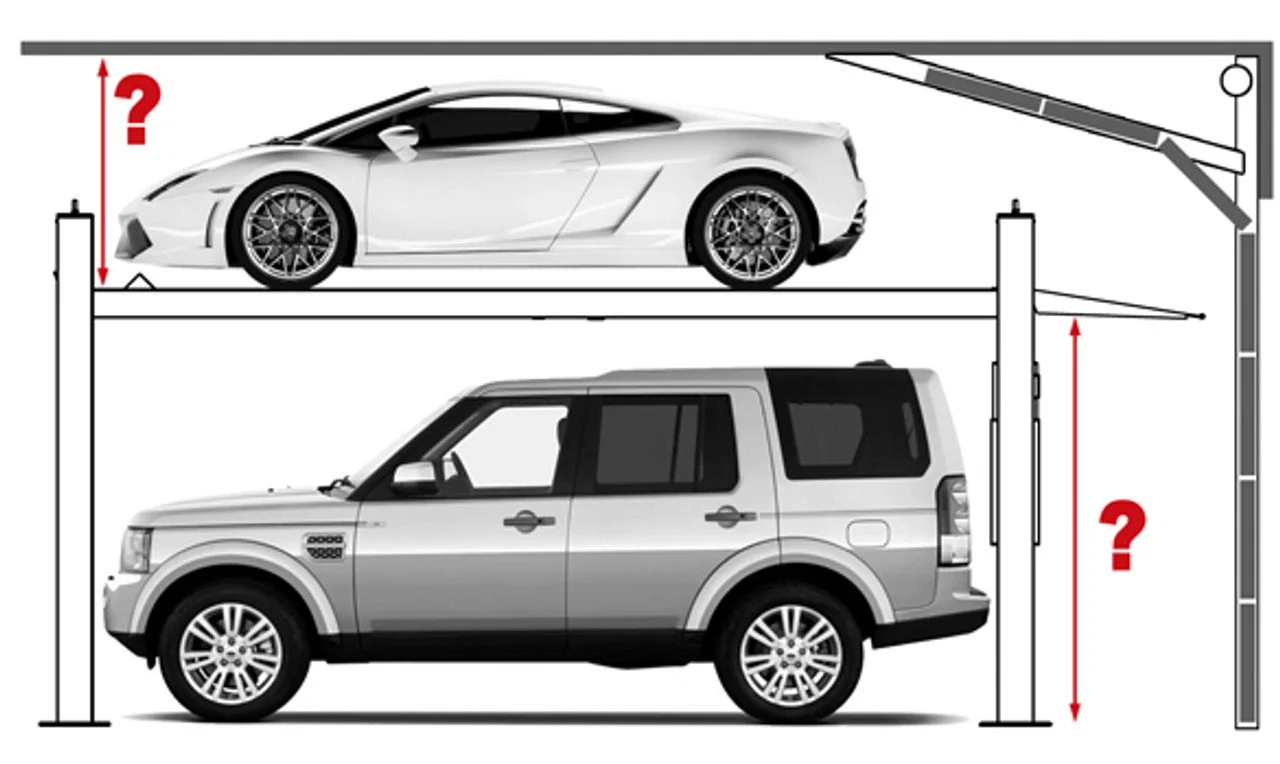

f you can find a lower BendPak Lift price, let us know, We will not be undersold! The HD-9XL is your 9,000-lb. rugged lifting solution if you need lift a car or truck with a wider and / or longer wheel base. Perfect for vehicle storage and service—at the shop or in the garage. Whether you’re a service professional or a DIY’er, BendPak’s got the right lift for you. This model is available with optional casters, dip-trays, jack platform and more. The HD-9XL four-post lift features wide drive-thru clearance and a standard lift-height but with extended runways for accommodating longer wheelbase vehicles. About the size of a typical parking space, these lifts truly maximize valuable floor space. Use them for storing cars and trucks, ATVs, snowmobiles, jet skis, golf carts, boats or just about anything else that needs to be up off the ground and safely in the air. If you’ve got at least a standard 8-foot ceiling, you’ll be able to make use of that wasted vertical space above your car. And optional caster kit allows you to roll the lift outside or wherever best suits your need. Just don’t make the mistake of calling the HD-9XL a “hobby lift.” Our expert engineers have packed this model with features that were previously only found on commercial-grade designs. Plus, it’s a BendPak, so you know it’s backed by over 40 years of experience and a reputation that carries just as much weight as the lift itself. We’re proud to have these HD-Series lifts in our lineup, and you’ll be proud to have one in your shop or garage. Dependable design 4 heavy-duty, high-quality, galvanized lifting cables and a single hydraulic cylinder mounted underneath the runway makes this lift the most durable, maintenance-free lifting system on the market. Dual-hub cable sheaves Reduce stress and fatigue on the axles, sheaves and cables. We insist on using dual-hub cable sheaves, even if they cost us more to make. When you buy BendPak, we throw in peace of mind as a free gift. Multi-level locking positions The HD‐9XL is equipped with multiple adjustable height locking positions for variable-height parking. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously. Heavy-duty aircraft cable Each lift is supplied with 4 high-quality galvanized lifting cables, rated at 14,400 lbs. each. The combined rating of these cables is 640% of the maximum lifting capacity of the entire lift! And we make sure it looks tidy too—all lifting cables are fully enclosed within the lift structure itself. Electric / hydraulic power system We incorporate maintenance-free electric hydraulic power systems into each lift for ultimate dependability, and all controls are conveniently located within close reach. Large base plates 10″ x 12″ base plates provide a solid foundation for the HD‐9XL. Single hydraulic cylinder Each lift is equipped with a single hydraulic cylinder, hidden away under the runway for minimum exposure and maximum reliable performance. Our industrial-grade hydraulic cylinders feature a single-piece, pilot fitted, machined steel piston, wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands to virtually eliminate fluid bypass. The micro-smooth chrome-rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001″ diametrically, to ensure superior cylinder operation and life. The superior-design high durometer, mechanically-loaded rod seals make rod leakage is a thing of the past while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth and last a very long time. An integrated flow restrictor provides a controlled descent in the case of an unexpected hose rupture. Durable powder-coat finish All HD-Series lifts feature a durable powder-coat finish that gives the metal a high-quality, extremely durable finish which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, we take pride in our meticulous 10-step process. First, all parts are visually inspected before being sandblasted. Afterwards, the parts are washed in our 5-stage phosphate tanks that can accommodate parts up to 25′ long. Once cleaned, they’re immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing process and most likely will cause chips in the powder. After the parts are washed and outgassed, any surfaces and / or threaded holes that need to be masked or plugged, are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints, before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun. The powder “sticks” to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into our curing oven and baked at 400° F for 45 minutes. Four models to choose from Take your pick. You’re currently looking at the extra-wide, standard-height HD‐9XL. The HD-9ST is the narrow model, the HD-9 is the standard-width model and the HD-9STX is the narrow-width, tall model car lift. Integrated design Lifting cables, airlines, safety latches and sheaves are all fully enclosed. Longer approach ramps These approach ramps were designed a little longer to help when loading low ground clearance vehicles. It’s the little bit that makes a big difference. Automatic safety locks Aircraft-quality stainless steel and aluminum pneumatic cylinders release all 4 locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure. FEATURES 9,000-lb. maximum lifting capacity CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493 Wide drive-thru with standard lift height and long runways Electric / hydraulic power system Internal “Anti-Sway” slider blocks in each column Features heavy-duty 3/8″ aircraft cable Multi-position safety locks in each column Ramps feature non-skid surface Runways include rail-kit for optional accessories Single hydraulic cylinder underneath runway Oversized self-lubricating cable rollers Rugged 1-1/4″ roller axles Adjustable lock ladders Push-button pneumatic safety release Optional 4,500-lb. capacity jack available (Model RJ-45) SPECS Lifting capacity*: 9,000 lbs. / 4,082 kg *Max capacity / front axle: 4,500 lbs. / 2,041 kg *Max capacity / rear axle: 4,500 lbs. / 2,041 kg Overall width: 110‐1/4” / 2,800 mm. Outside length: 198″ / 5,029 mm Overall length: 224″ / 5,690 mm Height of columns: 88″ / 2,235 mm Runway min height: 4-1/2″ / 114 mm Max rise: 70″ / 1,778 mm Max lifting height: 74-1/2″ / 1,892 mm Width between posts: 100‐1/4” / 2,555 mm. Runway width: 19″ / 483 mm Width between runways: 37-1/4″ – 44″ / 946 mm – 1,118 mm Length of runways: 188″ / 4,775 mm Min. wheelbase @ rated capacity: 135″ / 3,429 mm Min. wheelbase @ 75% capacity: 115″ / 2,921 mm Min. wheelbase @ 50% capacity: 95″ / 2,413 mm Min. wheelbase @ 25% capacity: 80″ / 2,032 mm Locking positions: 12 Lock spacing: every 4″ / 102 mm Lifting time: 45 sec Motor: 220 VAC / 60 Hz / 1 Ph Shipping weight: 2,040 lbs. / 927 kg Shipping dimensions: 204″ x 22″ x 40″ / 5,182 mm x 559 mm x 1,016 mm Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
