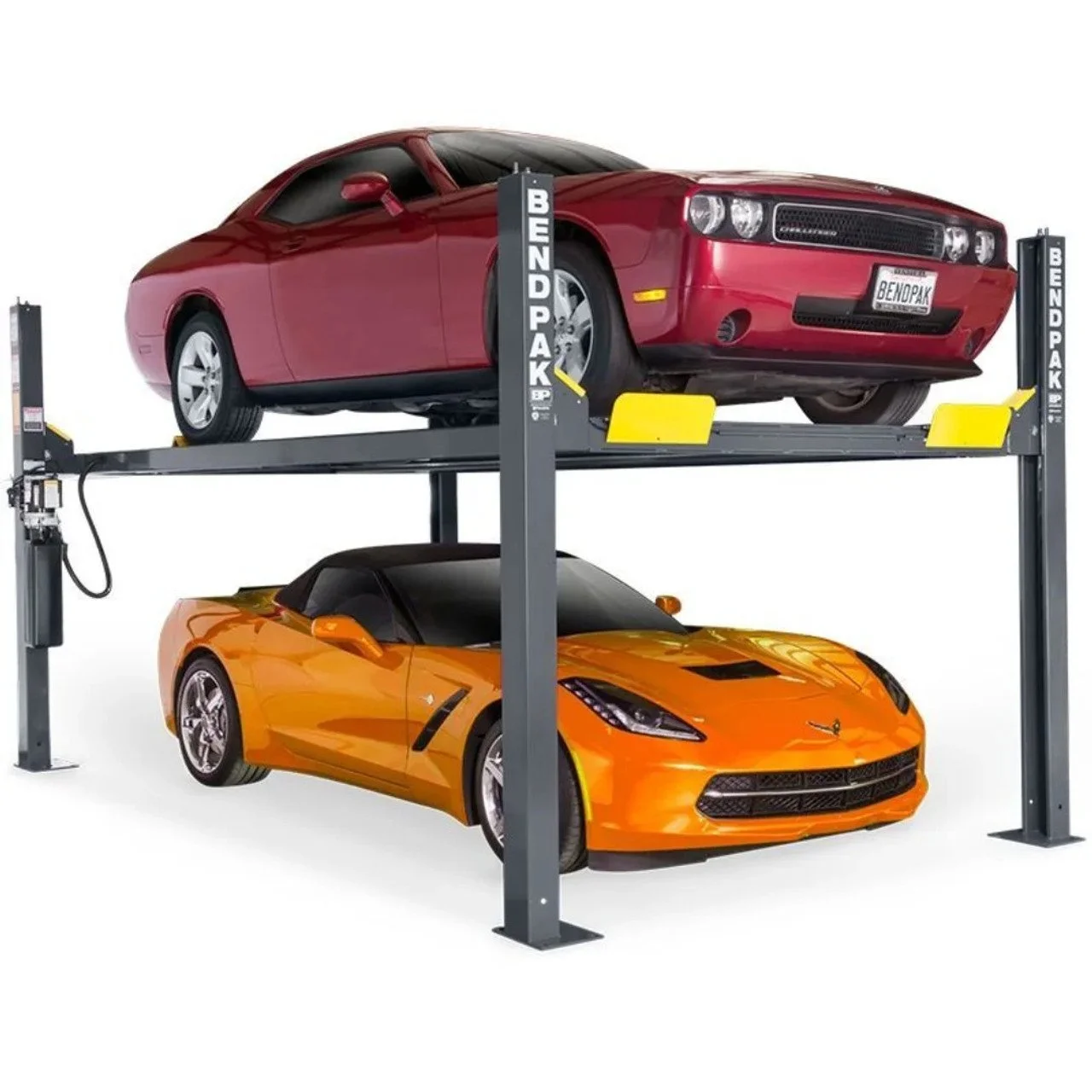

Bendpak HD-9 9,000-Lb. Capacity Standard Width 4 Post Car Lifts

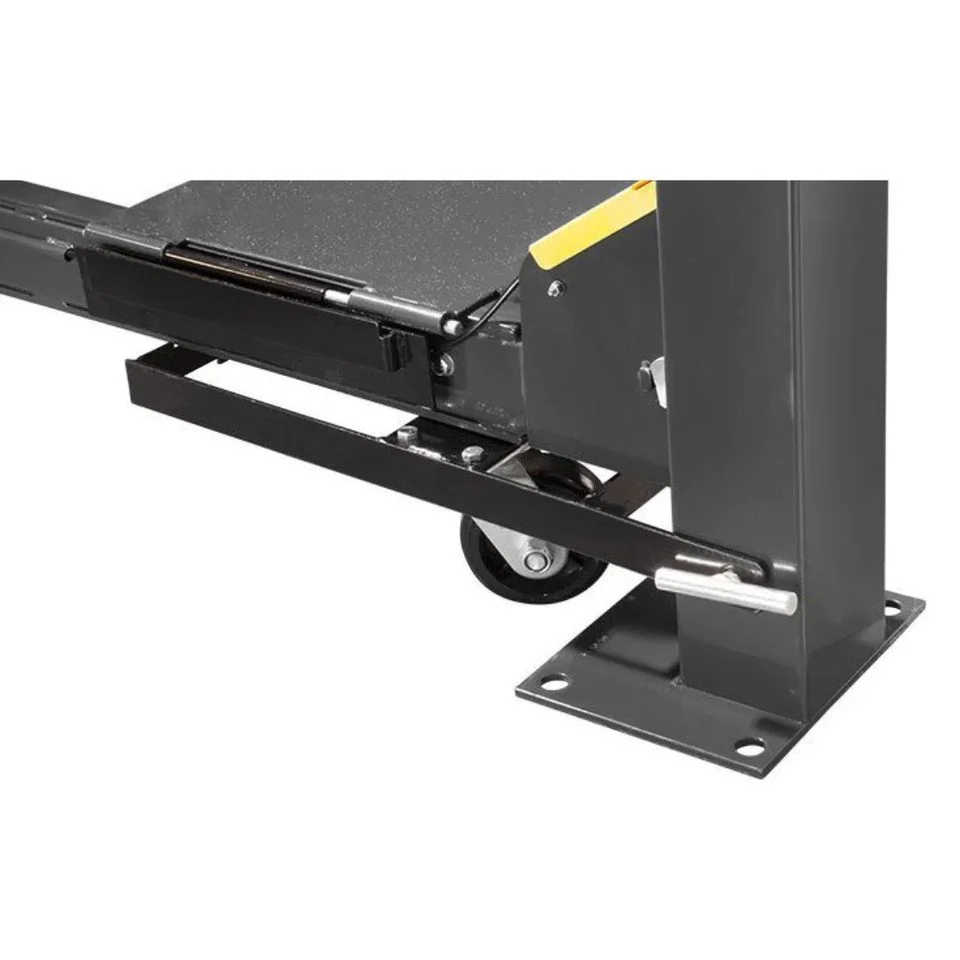

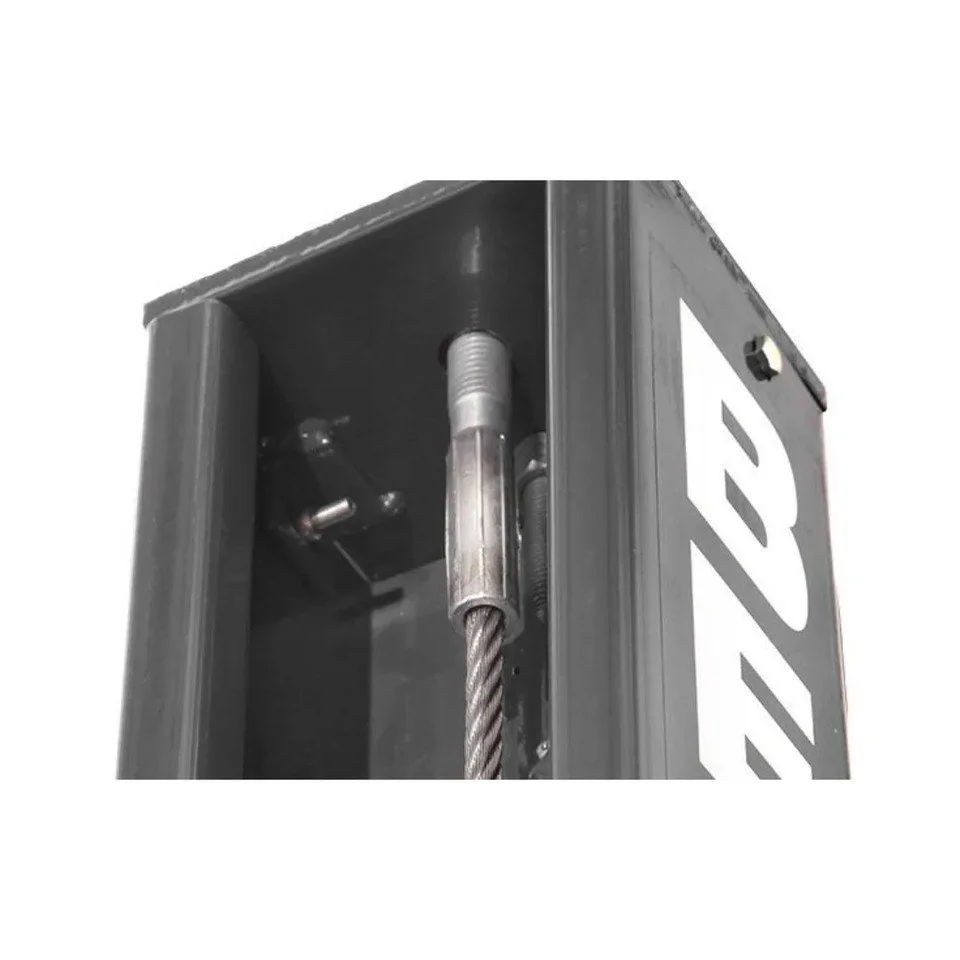

Bendpak HD-9 9,000-Lb. Capacity Standard Width 4 Post Car Lift The HD-9 Series of 9,000-lb. four-post lifts contains seven different lifting models. Each car lift is perfect for vehicle storage and service, whether you’re working at the shop or from your home garage. Each model is available with optional casters, drip trays, jack platforms and more. Why do so many DIY’ers and technicians choose this BendPak? It’s simple. This parking lift fits into almost every garage with clearance and dimensions of a normal parking space. Lower ceilings or more narrow spaces are generally not a problem! All you need to know are your garage dimensions and lifting needs, and a BendPak representative will outfit you with the best parking lift money can buy. The HD-9XW four-post lift achieves a formidable 82” rise and features extended-length columns, perfectly accommodating higher-clearance vehicles. Its standard width also makes it ideal for smaller bays and space-conscious home garages. The wires that make up our cables are aircraft-quality; each cable is able to safely hold 14,400 lbs., making the lift capacity of the cables alone 640% more than the 9,000-lb. certified rating. In other words, with just periodic lubrication provided by the user, your cables will last for many years of safe use. Creating garage space has never been easier. Caster sets can be optionally added to make your parking lift mobile. This is perfect for any shop or garage than wants to diversify how space is used. These wheels make it easy to adjust and reposition the lift. Feel free to keep your car on top while you move it! Spring-loaded safety locks automatically engage at each ladder position, and they do so continuously as the lift rises. When the platform stops, all four locks will be engaged in a lock position and the lift platform will be even. When the lift descends, they all release at once. A secondary slack-cable detection system will shut down the entire lift application if slack is found in the cables, meaning you can park your vehicles and feel assured that they are protected from virtually anything and everything that could possibly happen. Features 9,000-lb. maximum lifting capacity. CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493. Freestanding design. Perfect for parking, storage and service. Runways accommodate narrow and standard vehicles. Runways include rail-kit for optional accessories. Electric / hydraulic power system. Single hydraulic cylinder mounted underneath runway. Fully enclosed lifting cables, safety locks and sheaves. Internal anti-sway slider blocks in each column. Oversized self-lubricating cable rollers. Features heavy-duty 3/8″ aircraft cable. Rugged 1.25″ roller axles. Multi-position safety locks in each column. Adjustable lock ladders. Runways feature non-skid surface. Push-button pneumatic safety release. Independent backup slack-cable safety latches. Customizable power unit location. Removable approach ramps for additional drive-under clearance. Longer approach ramps for low-ground clearance vehicles. Optional drive-thru ramps available. Optional drip trays available. Optional solid deck available to increase storage capacity. Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45). ETL Approved. Specifications Model HD-9 Lifting Capacity 9,000 lbs. / 4,082 kg Max capacity at Front Axle 4,500 lbs. / 2,041 kg Max capacity at Rear Axle 4,500 lbs. / 2,041 kg a Min. runway height 4.75 in. / 121 mm b Maximum rise 70.25 in. / 1,782 mm c Maximum lifting height 75 in. / 1,903 mm d Overall width ± .125 in. / 3 mm 111.75 in. / 2,840.5 mm e Outside length 174 in. / 4,418 mm f Overall length 200.5 in. / 5,093 mm g Height of post 88 in. / 2,232 mm h Distance between posts 100.25 in. / 2,546 mm i Drive-thru clearance 86.65 in. / 2,200 mm j Runway width 19 in. / 482 mm k Runway length 158.25 in. / 4,019 mm l Width between runways (inside utility rail inner edges) 35 in. – 41.25 in. / 887 mm – 1,045 mm m Runway centerline 57 in. – 61.110 / 1,445 mm – 1,603 mm n Outside edge of runways 75.75 in. – 82 in. / 1,927 mm – 2,085 mm Max. Load Operating Pressure 2,460 psi Min. wheelbase @ rated cap. 1 115 in. / 2,921 mm Min. wheelbase @ 75 capacity(1) 100 in. / 2,540 mm Min. wheelbase @ 50 capacity(1) 85 in. / 2,159 mm Min. wheelbase @ 25 capacity(1) 70 in. / 1,778 mm Safety Lock positions 14 spaced every 4 in. / 102 mm Lifting time 45 – 50 seconds Motor 220 VAC, 60 Hz, 1 Ph (special voltages available upon request) 1. The Lift supports less weight than its rated capacity if the Vehicle’s wheelbase is shorter; this is because the wheels are closer to the middle of the Runways, where there is less support. For example, the maximum weight allowed on the Lift for a Vehicle with a wheelbase of 85 in. is 50 percent of the Lift’s rated capacity (or 4,500 lbs. when the rated capacity is 9,000 lbs.).
